4-Axis CNC Diamond Wire Saw Machine with 360° Servo-Rotary Table 16-Surface Slideway and 28 Rolling-Wheel Synchronous Lifts

Discovery 4-2500SA / 3000SA is the "Plus" flagship of CNC diamond wire saws. A four-axis, fully digital center with a 360° servo-rotary table, 16-surface slideways, and 28 rolling-wheel synchronous lifts that sculpts arcs, columns, letters, Chinese characters, and tombstones up to 3 m × 3 m × 1.5 m in a single program, delivering mirror-quality surfaces.

Same 20-40 m/s wire speed, 15 kW PM motor, and 3 m³/h water system for both models.

• X-axis - table longitudinal (block length)
• Y-axis - cross beam transverse (block width)
• Z-axis - vertical head lift (block height)

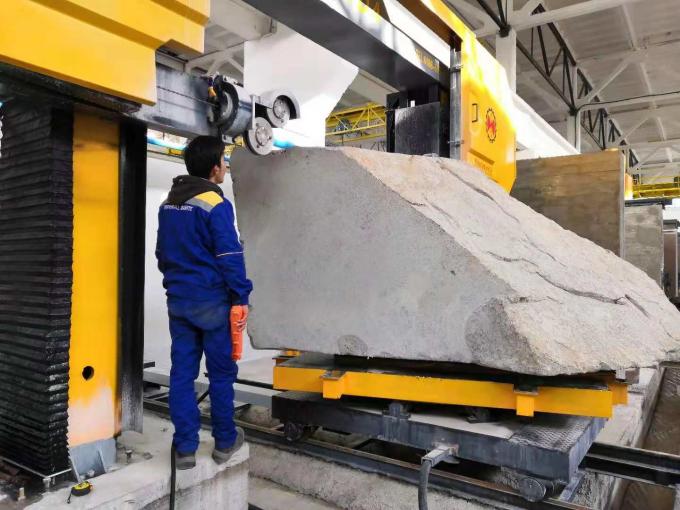

• C-axis - servo-driven 360° rotation (continuous cylinder or four-face dressing)

Result: true 3-D sculpture, 360° column, four-sided squaring, or curved façade panel without repositioning.

• 360° columns - Ø300-2200 mm, full or barrel
• Arc slabs - curved wall cladding, column façades
• Numerals & letters - 3-D signage, address stones
• Chinese characters - artistic monuments
• Tombstones - shaped headstones, curved borders
• Four-side dressing - squaring 20 t-blocks

Materials: granite, marble, quartzite, basalt, engineered stone.
