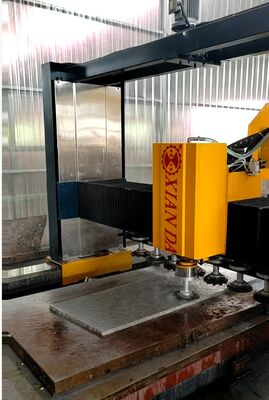

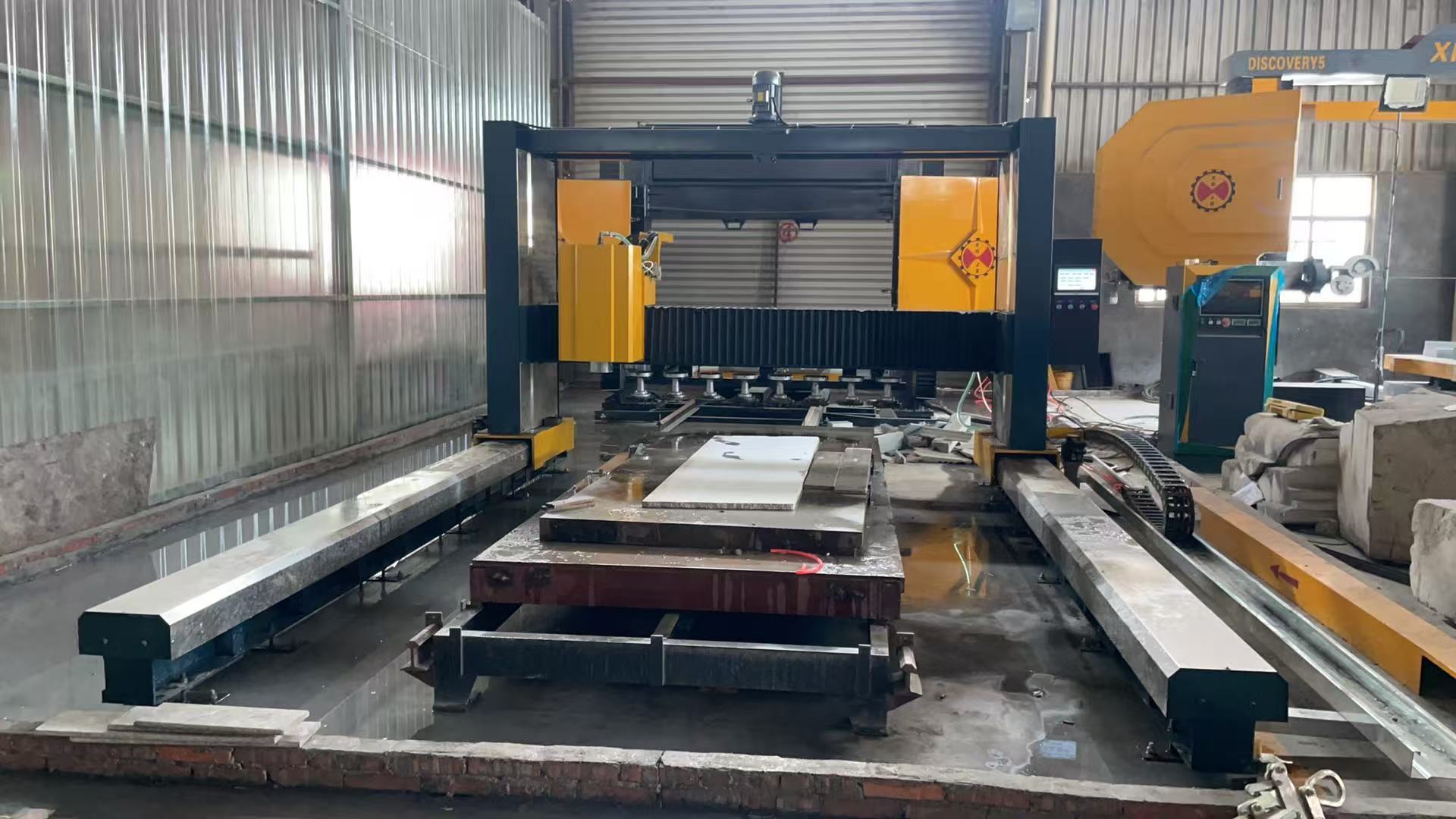

Gantry Intelligent Single Head Polishing Machine - Automatic Feed & Polishing Cycle

1
MOQ
To Be Negotiable
Precio
Gantry Intelligent Single Head Polishing Machine - Automatic Feed & Polishing Cycle
Caracteristicas Galería Descripción de producto Pida una cita
Caracteristicas
Especificaciones
Estructura: Estructura de puente
Control: CNC
Material: superficies de mármol, granito y piedra natural
Motor principal: 15kw
poder total: 19kw
Dimensión de esquema: 5300*5000*3000MM
Consumo de agua: 2m³/hora
Número de cabeza de molienda: 8 PCS
Resaltar:

gantry stone polishing machine

,

automatic feed polishing machine

,

single head slab polisher
Información básica
Lugar de origen: Jinjiang, Fujian, China
Nombre de la marca: Xianda Machinery
Certificación: API, CCC, SONCAP, GOST, ISO, CE, SGS;IAF
Número de modelo: ZDPM-3522/3545
Pago y Envío Términos
Detalles de empaquetado: Paquete de plástico, adecuado para el transporte marítimo
Tiempo de entrega: 1 mes
Condiciones de pago: L/c ， t/t ， d/p ， western union, paypal, dinero gram, otros
Capacidad de la fuente: 1000 sets/año
Descripción de producto
Gantry Intelligent Single Head Polishing Machine - Automatic Feed & Polishing Cycle
Heavy-Duty Gantry Intelligent Polishing Machine
Our Microcomputer-Controlled Gantry Polishing Machine delivers precision and efficiency for industrial finishing applications. Designed to overcome challenges like inconsistent results and slow workflows, this solution balances speed, accuracy, and ease of use for metal components, automotive parts, and hardware processing.
Technical Specifications
Parameter Unit LMPM-2532
Number of Station pcs 8
Number of spindle heads pcs 1
Grinding Head replacement method / Automatic
Lifting strock mm 1200
Left and right travel mm 2500
Front and back travel mm 3500
Main motor power kw 11
Total power kw 17
Side-beam travel structure / linear guide structure
Front/Rear drive mode / Dual motor Y-axis drive
Overall dimensions mm 5300*5000*3000
Total water consumption m³/h 2
Core Design: Stability & Precision Built In
This machine's foundation is engineered to eliminate common polishing flaws:
  • Microcomputer control + gantry mobile structure: Coordinates movements with pinpoint accuracy to avoid uneven finishes.
  • Four-guide-rod crossbeam lifting: Ensures ultra-smooth, wobble-free movement for consistent results.
  • Pneumatic machine head + high-precision components: Delivers high efficiency, tight precision, and stability for high-volume production.
Flexible Polishing System: Adapt to Any Job
No need for multiple specialized tools—this machine fits diverse workflows:
  • Station-specific controls: Each station can be toggled independently with adjustable speed and pressure.
  • User-friendly program settings: Quickly input parameters for different workpiece sizes, materials, and finishes.
Automatic Tool Change: Cut Labor, Boost Output
Address labor shortages and costs with this time-saving feature:
  • Automatic tool change function: Eliminates slow, error-prone manual swaps.
  • One operator can manage multiple machines simultaneously, freeing teams for higher-value tasks.
Ideal For High-Demand Industries
This machine supports production lines across sectors:
  • Automotive: Polish engine parts, chassis components, and wheel rims.
  • Metal Fabrication: Finish steel plates, welded structures, and profiles.
  • Hardware/Sanitary Ware: Handle small fixtures and larger parts alike.
Ready to Upgrade Your Polishing Process?
This machine delivers faster production, lower labor costs, and consistent quality. Contact us for a free consultation, quote, or demo:
