Discovery 4 CNC Diamond Wire Saw Machine For Marble Granite

1
MOQ
To Be Negotiable
Precio
Discovery 4 CNC Diamond Wire Saw Machine For Marble Granite
Caracteristicas Galería Descripción de producto Pida una cita
Caracteristicas
Especificaciones
Velocidad del alambre: 0-40m/s
Diámetro de la rueda: 1600MM
peso bruto: 6000 kg
Consumo de agua: 6m3/H
Certificación: API, CCC, SONCAP, GOST, ISO, CE, SGS;IAF
Palabras clave: Máquina de piedra
Tiempo de garantía: un año
Control: Máquina de corte por CNC
Tamaño de procesamiento máximo: 2000*3000*1500 mm
Tamaño de procesamiento máximo: Se trata de un sistema de medición de las emisiones de CO2
Diámetro del alambre: 0.6-1.8 mm
Automatización: Automático
Longitud de alambre: 10m
Tipo de control: CNC
Longitud de corte: 20-60m
Diámetro: 8.5 mm a 11.5 mm
Precisión de corte: Alto
huso: 15kw
Tamaño del tranvía: Las mediciones de las emisiones de CO2
Distancia del ajuste: 450 mm
Motor bruto: 11kw
Sistema de control: Sistema PLC
potencia nominal: 2,2 kw
Resaltar:

CNC diamond wire saw machine

,

marble cutting wire saw

,

granite wire saw machine
Información básica
Lugar de origen: Jinjiang, Fujian, China
Nombre de la marca: Xianda Machinery
Certificación: API, CCC, SONCAP, GOST, ISO, CE, SGS;IAF
Número de modelo: Descubrimiento 4-2000/2500/3000
Pago y Envío Términos
Detalles de empaquetado: Paquete de plástico, adecuado para el transporte marítimo
Tiempo de entrega: 1 mes
Condiciones de pago: L/c ， t/t ， d/p ， western union, paypal, dinero gram, otros
Capacidad de la fuente: 1000 sistemas/año
Descripción de producto
Discovery 4 CNC Diamond Wire Saw Machine
Precision cutting machine designed for processing large stone blocks into various special shapes. This cost-effective solution delivers high-precision cuts in granite, marble, and other stone materials with exceptional efficiency and durability.
Technical Specifications
Model Max Processing Size Wheel Diameter Trolley Size Table Bearing Weight Wire Speed Main Motor Outline Dimension Gross Weight Water Consumption
Discovery 4-2000 2000*3000*1500mm 1600mm 1400*2500mm 20T 0-40m/s 11kw 6800*6300*3950mm 6000kg 4m³/h
Discovery 4-2500 2500*3000*1500mm 1600mm 1400*2500mm 20T 0-40m/s 11kw 7800*6300*3950mm 6250kg 4m³/h
Discovery 4-3000 3000*3000*1500mm 1600mm 1400*2500mm 20T 0-40m/s 11kw 8800*6300*3950mm 6500kg 4m³/h
Product Images

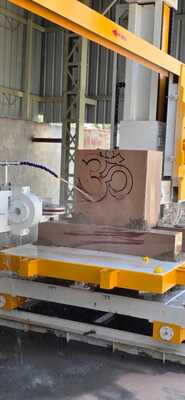

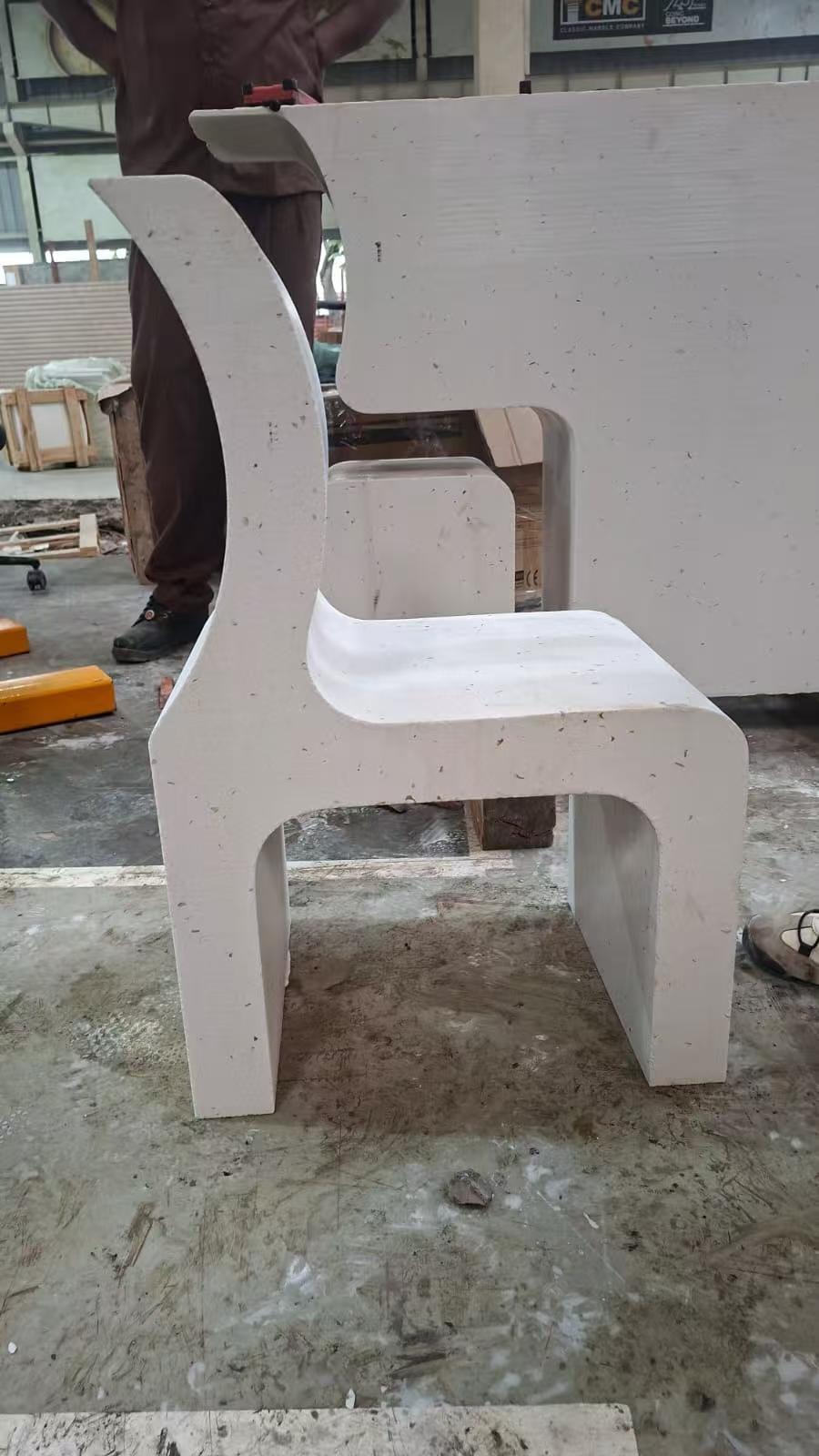

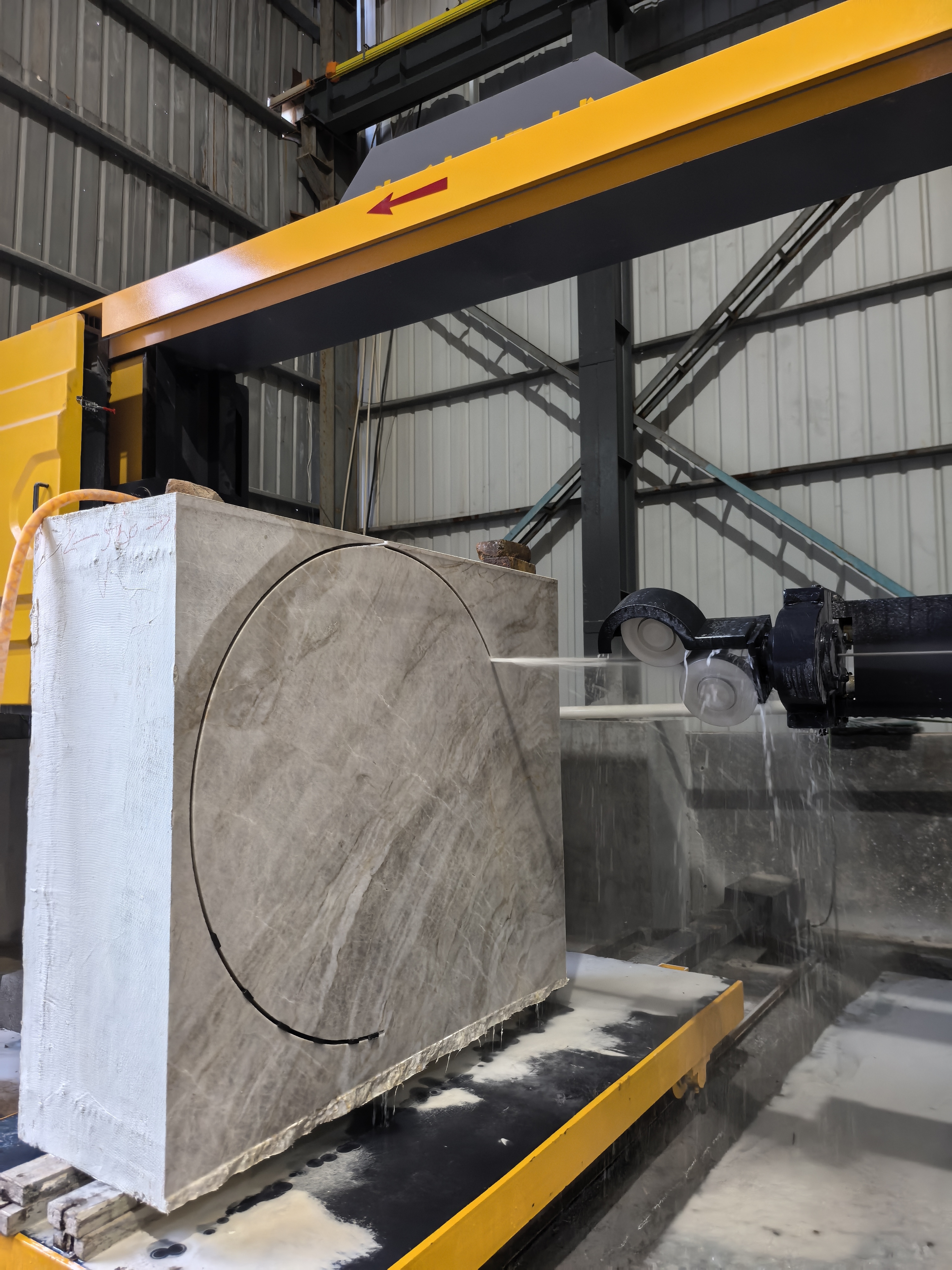

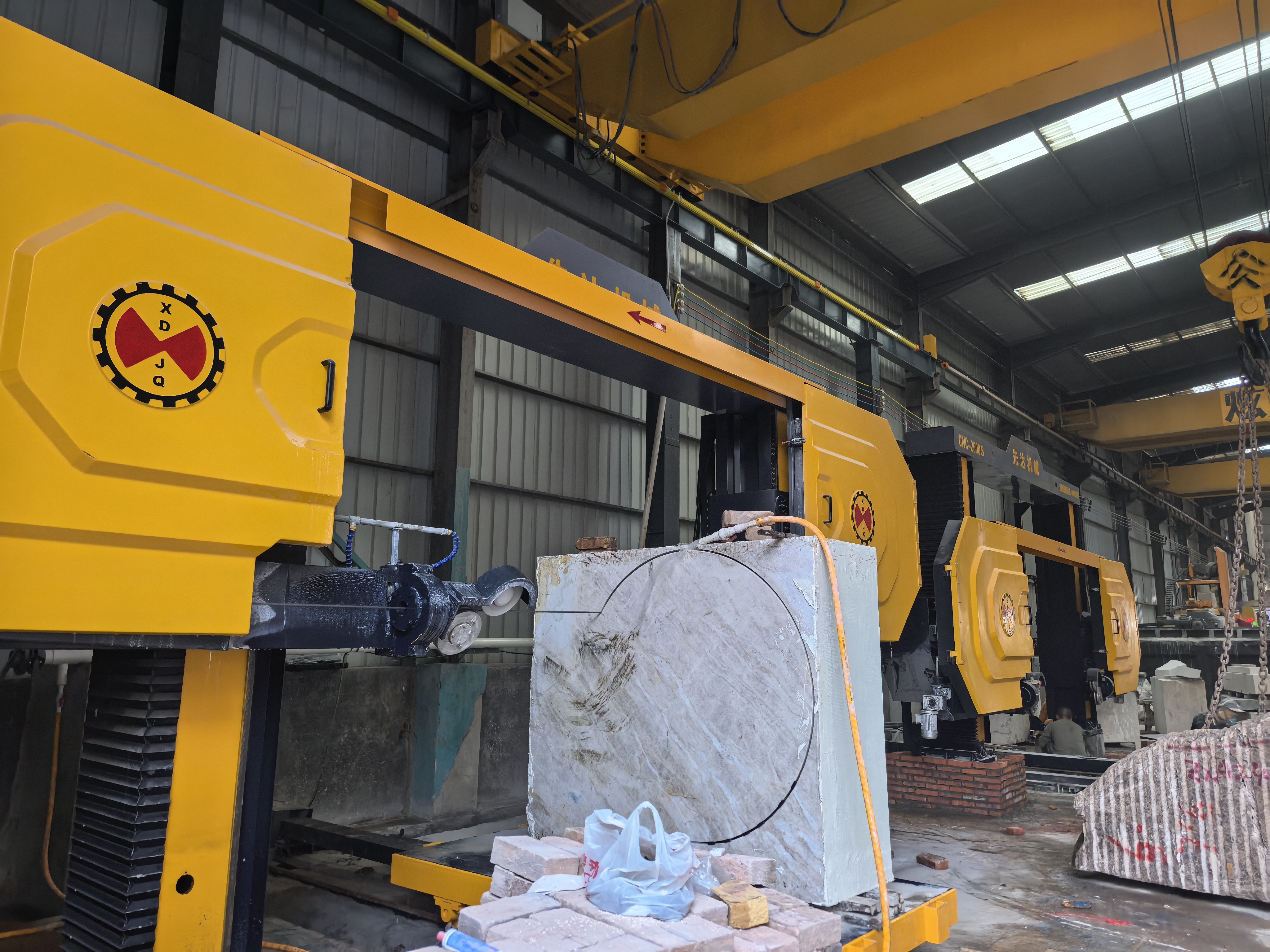

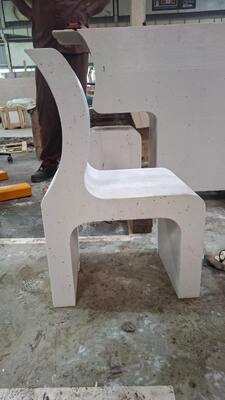

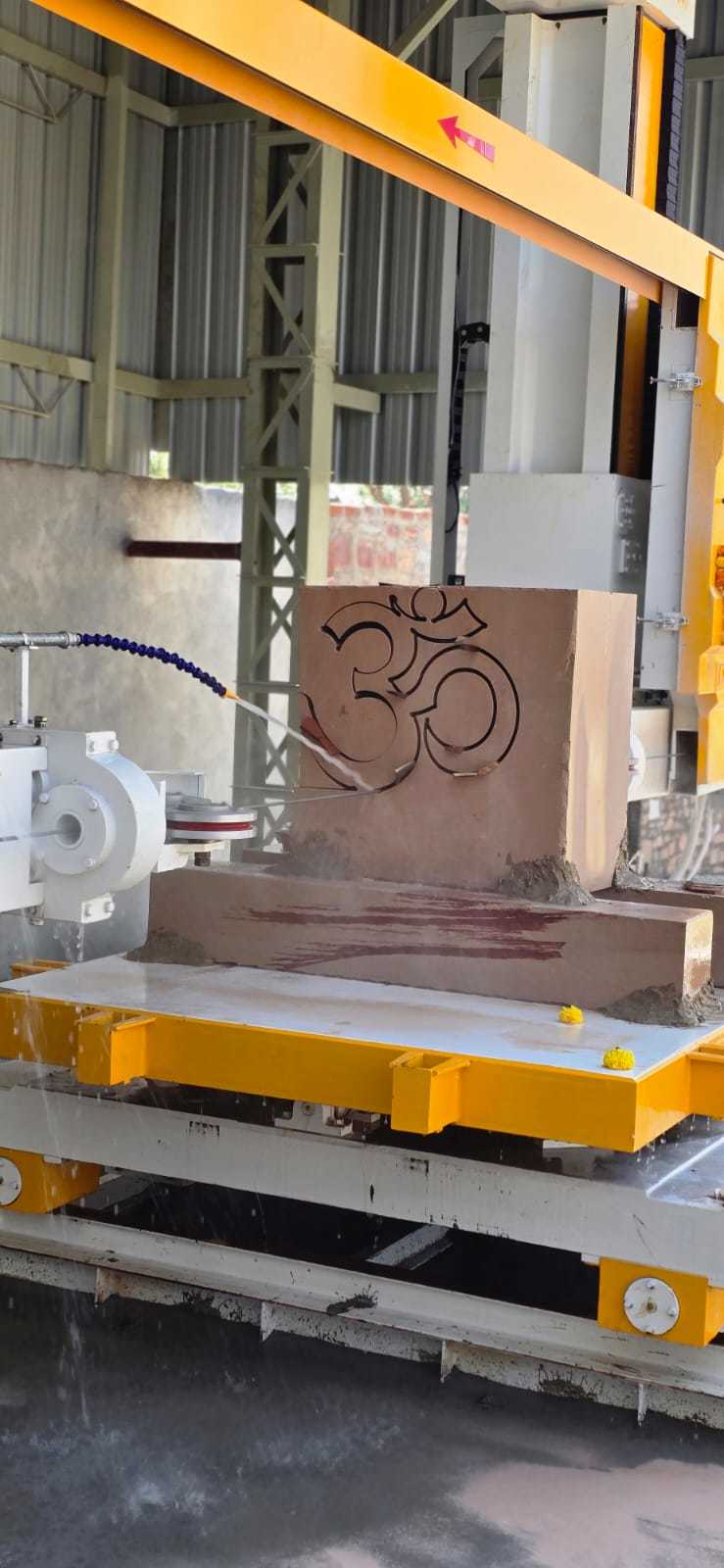

Discovery 4 CNC Diamond Wire Saw Machine For Marble Granite 0 Discovery 4 CNC Diamond Wire Saw Machine For Marble Granite 1 Discovery 4 CNC Diamond Wire Saw Machine For Marble Granite 2
Key Features
  • CNC control system for precise automated operation
  • Maximum processing capacity up to 3000*3000*1500mm
  • Durable 1600mm wheel diameter for stable cutting
  • 20-ton table bearing capacity for heavy stone blocks
  • Variable wire speed up to 40m/s for optimal cutting performance
  • Low water consumption at 4m³/h for efficient operation
  • Designed for cutting intricate shapes including round and curved stones
Applications
This diamond wire saw machine is ideal for stone cutting applications including block squaring, slab cutting, and creating special shapes. It effectively processes marble, granite, artificial stone, sandstone, quartz, and other stone materials. Suitable for both large-scale industrial operations and specialized stone fabrication projects.
Customization & Ordering Details
  • Brand Name: XIANDA MACHINERY
  • Model Numbers: Discovery 4-2000, 4-2500, 4-3000
  • Origin: Jinjiang, Fujian, China
  • Certifications: API, CCC, SONCAP, GOST, ISO, CE, SGS, IAF
  • Minimum Order: 1 SET
  • Packaging: Plastic packaging suitable for sea transportation
  • Delivery Time: 1 month
  • Supply Capacity: 1000 Sets/Year
  • Payment Options: L/C, T/T, D/P, Western Union, Paypal, Money Gram
Technical Support & Services
Our dedicated technical support team provides comprehensive services including maintenance, repair, troubleshooting, and installation. We offer training and expert advice on machine operation and maintenance to ensure optimal performance and longevity.
Packaging & Shipping
Each diamond wire saw machine is securely packaged in protective wooden crates designed for safe sea transportation. All shipments are tracked and monitored throughout the delivery process to ensure timely and secure arrival.
Frequently Asked Questions
  • What is the brand name of the diamond wire saw machine? The brand name is XIANDA MACHINERY.
  • What model numbers are available? Available models include Discovery 4-2000, 4-2500, and 4-3000.
  • Where is the machine manufactured? The machine is manufactured in Jinjiang, Fujian, China.
  • What certifications does the machine have? Certifications include API, CCC, SONCAP, GOST, ISO, CE, SGS, and IAF.
  • What is the minimum order quantity? The minimum order quantity is 1 SET.
