CNC Diamond Wire-Saw Dressing Machine With 360° Rotary Table For 1.5M/1.8M/2.1M/2.2M/3.5M Big Blocks

1 juego
MOQ
To Be Negotiable
Precio
CNC Diamond Wire-Saw Dressing Machine With 360° Rotary Table For 1.5M/1.8M/2.1M/2.2M/3.5M Big Blocks
Caracteristicas Galería Descripción de producto Pida una cita
Caracteristicas
Especificaciones
Palabras clave: Máquina de piedra
Ventaja: Tiempo de la larga vida de la eficacia alta
Voltaje: 220V/380V
Consumo de agua: 4m3/h
Fuerza: 11/15kw
Altura de corte: 1800/2100/2200 mm
Longitud de corte: 3500 mm
Tamaño del tranvía: 1800*2000mm 2000*2500mm
Resaltar:

Big Blocks CNC Diamond Wire-Saw

,

1.5M CNC Diamond Wire-Saw

,

CNC Diamond Wire-Saw Dressing Machine
Información básica
Lugar de origen: Jinjiang, Fujian, China
Nombre de la marca: Xianda Machinery
Certificación: API, CCC, SONCAP, GOST, ISO, CE, SGS;IAF
Número de modelo: CTS-3500-18/21/22FW: el número de unidades y el número de unidades.
Pago y Envío Términos
Detalles de empaquetado: Amarre de cable metálico, adecuado para transporte marítimo/aéreo/terrestre/ferroviario.
Tiempo de entrega: 1 mes
Condiciones de pago: LC, D/A, D/P, T/T, Western Union, MoneyGram
Capacidad de la fuente: 1000 sistemas/año
Descripción de producto

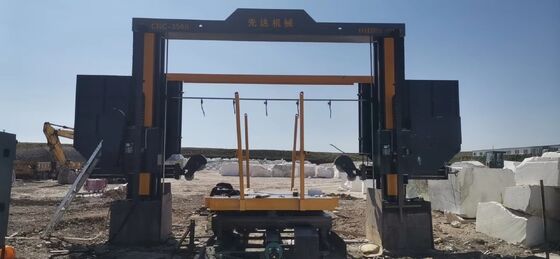

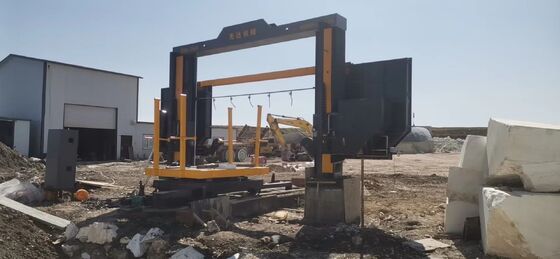

CTS-3500 Series CNC Diamond Wire-Saw Dressing Machine
The CTS-3500-18/21/22FW is a four-axis, CNC-controlled diamond wire-saw dressing centre engineered for high-precision shaping of large stone blocks. With 16-surface slideways, 28 rolling-wheel synchronous lift and a 360° rotary table, it dresses four faces without repositioning and sculpts arcs, columns, numerals, letters or Chinese characters up to 3.5 m long * 3.5 m wide * 2.2 m high – all in a single program.
Technical Specifications
Parameter Unit CTS-3500-18 CTS-3500-21 CTS-3500-22FW
Max processing size mm 3500*3000*1800 3500*3500*2100 3500*3500*2200
Trolley size mm 1800*2000 2000*2500 2000*2500
Table bearing weight T 35 50 50
Wire speed m/s 20-40 20-40 20-40
Main motor kW 11 15 15
Outline dimension mm 9300*7200*4800 9800*7800*5600 8800*7800*5750
Gross weight kg 10200 12000 11500
Water consumption m³/h 4 4 4
CNC Diamond Wire-Saw Dressing Machine With 360° Rotary Table For 1.5M/1.8M/2.1M/2.2M/3.5M Big Blocks 0 CNC Diamond Wire-Saw Dressing Machine With 360° Rotary Table For 1.5M/1.8M/2.1M/2.2M/3.5M Big Blocks 1 CNC Diamond Wire-Saw Dressing Machine With 360° Rotary Table For 1.5M/1.8M/2.1M/2.2M/3.5M Big Blocks 2 CNC Diamond Wire-Saw Dressing Machine With 360° Rotary Table For 1.5M/1.8M/2.1M/2.2M/3.5M Big Blocks 3 CNC Diamond Wire-Saw Dressing Machine With 360° Rotary Table For 1.5M/1.8M/2.1M/2.2M/3.5M Big Blocks 4 CNC Diamond Wire-Saw Dressing Machine With 360° Rotary Table For 1.5M/1.8M/2.1M/2.2M/3.5M Big Blocks 5 CNC Diamond Wire-Saw Dressing Machine With 360° Rotary Table For 1.5M/1.8M/2.1M/2.2M/3.5M Big Blocks 6 CNC Diamond Wire-Saw Dressing Machine With 360° Rotary Table For 1.5M/1.8M/2.1M/2.2M/3.5M Big Blocks 7 CNC Diamond Wire-Saw Dressing Machine With 360° Rotary Table For 1.5M/1.8M/2.1M/2.2M/3.5M Big Blocks 8
Four-Axis Motion & Functions
  • X-axis – table longitudinal (block length)
  • Y-axis – cross beam transverse (block width)
  • Z-axis – vertical head lift (block height)
  • C-axis – table 360° rotation (continuous cylinder or four-face dressing)
Result: true 3-D sculpture, 360° column, four-side dressing or curved façade panel without repositioning.

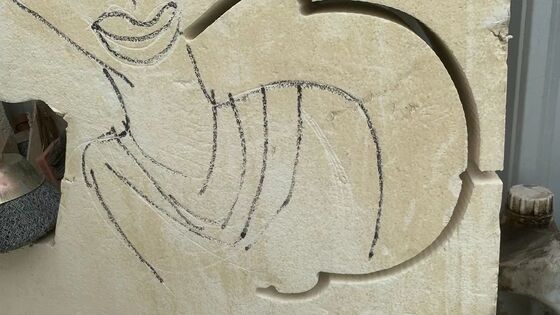

Application Gallery
  • 360° columns
  • Arc slabs – curved wall cladding, column façades
  • Numerals & letters – 3-D signage, address stones
  • Chinese characters – artistic monuments
  • Four-side dressing – monument block squaring
  • Curved kerbs – radius road edges
Materials: granite, marble, quartzite, basalt, engineered stone.
Workflow (1 Operator)
  1. Load block onto rotary table (forklift or vacuum lifter)
  2. Import CAD file (.dxf, .stp) or use on-screen wizard
  3. Select wire speed & passes – click START
  4. Machine auto-cuts – table rotates or head moves as programmed
  5. Unload finished piece – ready for polishing or direct install
Package, Delivery & Warranty
  • Export crate: wire rope lashing, suitable for sea/air/land/rail transportation
  • Delivery: 30 days (stock) / 40 days (custom colour)
  • Warranty: 12 months for parts
  • Installation: video-guide + remote support; on-site service optional
  • Spare parts: 48 h dispatch from regional warehouse
