Heavy-Duty Gantry Intelligent Polishing Machine Automatic Feed & Polishing Cycle

1
MOQ
To Be Negotiable
Precio
Heavy-Duty Gantry Intelligent Polishing Machine Automatic Feed & Polishing Cycle
Caracteristicas Galería Descripción de producto Pida una cita
Caracteristicas
Especificaciones
Estructura: Estructura de puente
Control: cnc
Material: superficies de mármol, granito y piedra natural
Motor principal: 15kw
potencia total: 19kw
Dimensión del contorno: 5300*5000*3000MM
Consumo de agua: 2m³/hora
Número de cabeza de molienda: 8 piezas
Resaltar:

Intelligent Polishing Machine

,

Heavy-Duty Polishing Machine

,

Automatic Feed Polishing Machine
Información básica
Lugar de origen: Jinjiang, Fujian, China
Nombre de la marca: Xianda Machinery
Certificación: API, CCC, SONCAP, GOST, ISO, CE, SGS;IAF
Número de modelo: ZDPM-3522/3545
Pago y Envío Términos
Detalles de empaquetado: Paquete de plástico, adecuado para el transporte marítimo
Tiempo de entrega: 1 mes
Condiciones de pago: L/c ， t/t ， d/p ， western union, paypal, dinero gram, otros
Capacidad de la fuente: 1000 sistemas/año
Descripción de producto

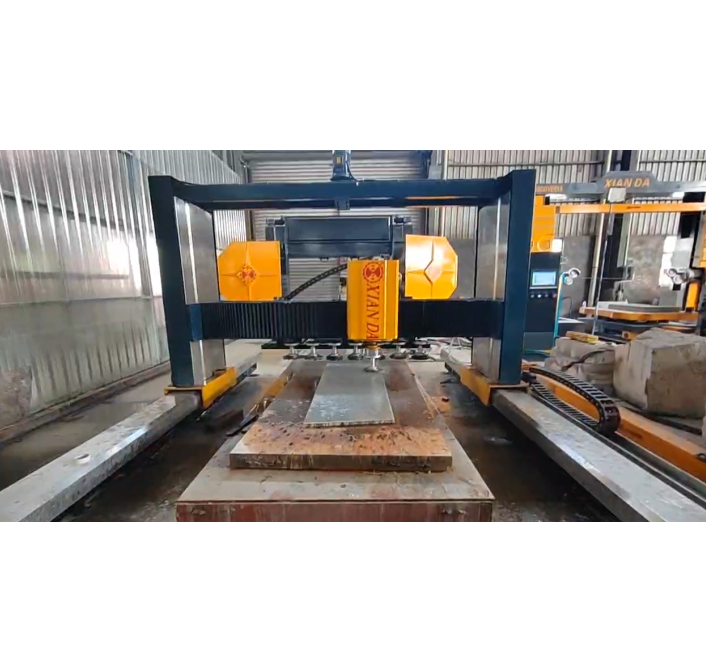

Heavy-Duty Gantry Intelligent Polishing Machine
Automatic Feed & Polishing Cycle
Transform your industrial surface finishing with the Microcomputer-Controlled Gantry Polishing Machine. This advanced system eliminates inconsistent results, slow workflows, and rising labor costs by delivering precision, efficiency, and ease of use for metal components, automotive parts, and hardware processing.
Technical Specifications
Parameter Unit LMPM-2532
Number of Station pcs 8
Number of spindle heads pcs 1
Grinding Head replacement method / Automatic
Lifting stroke mm 1200
Left and right travel mm 2500
Front and back travel mm 3500
Main motor power kw 11
Total power kw 17
Side-beam travel structure / linear guide structure
Front/Rear drive mode / Dual motor Y-axis drive
Overall dimensions mm 5300*5000*3000
Total water consumption m³/h 2
Core Design: Stability & Precision Engineering
Built to eliminate common polishing flaws with advanced engineering features:
  • Microcomputer control + gantry mobile structure: Coordinates movements with pinpoint accuracy to prevent uneven finishes
  • Four-guide-rod crossbeam lifting: Ensures ultra-smooth, wobble-free movement for consistent polishing results
  • Pneumatic machine head + high-precision components: Delivers high efficiency, tight precision, and rock-solid stability for high-volume production
Flexible Polishing System
Adapt to diverse workflows without multiple specialized tools:
  • Station-specific controls with independent on/off toggling and adjustable speed/pressure
  • User-friendly program settings for different workpiece sizes, materials, and finishes
  • Suitable for both delicate small hardware and heavy automotive components
Automatic Tool Change System
Address labor challenges with time-saving automation:
  • Automatic tool change function eliminates slow, error-prone manual swaps
  • Enables one operator to manage multiple machines simultaneously
  • Frees teams for higher-value quality control and process optimization tasks
Ideal Applications
Supports production lines across multiple industrial sectors:
  • Automotive: Engine parts, chassis components, wheel rims
  • Metal Fabrication: Steel plates, welded structures, profiles
  • Hardware/Sanitary Ware: Small fixtures, faucets, and larger components
Ready to Upgrade Your Polishing Process?
This Industrial Precision Polishing Equipment delivers faster production, lower labor costs, and consistent quality. Elevate your industrial finishing capabilities with our High-Stability Industrial Finishing Machine – delivering precision performance one polish at a time.
Contact Us
Email: group@chinaxianda.com
Phone: +8613055673306
Contact us for a free consultation, quote, or demonstration
etiqueta:

heavy-duty stone slab polishing machine

automatic feed polishing machine

intelligent gantry polishing machine
