Inicio /Productos/Diamond Wire Saw Machine/5-Axis Bridge Stone Cutter with Italian DDX System, 900mm Saw Blade, and ±0.1 mm Cutting Accuracy

5-Axis Bridge Stone Cutter with Italian DDX System, 900mm Saw Blade, and ±0.1 mm Cutting Accuracy

1
MOQ
USD 60000
Precio
5-Axis Bridge Stone Cutter with Italian DDX System, 900mm Saw Blade, and ±0.1 mm Cutting Accuracy
Caracteristicas Galería Descripción de producto Pida una cita
Caracteristicas
Especificaciones
Dimensión de la mesa de trabajo: 3400*2000
Resaltar:

5-axis bridge stone cutter

,

900mm saw blade stone cutter

,

Italian DDX system stone cutter
Información básica
Nombre de la marca: xianda
Certificación: CE SGS ISO
Número de modelo: Crear900
Pago y Envío Términos
Detalles de empaquetado: Normas internacionales de embalaje para el transporte
Tiempo de entrega: 45 días
Condiciones de pago: T/T
Capacidad de la fuente: 100set/año
Descripción de producto
5-Axis Bridge Stone Cutter with Italian DDX System 900mm Saw Blade and ±0.1 mm Cutting Accuracy
Product Overview

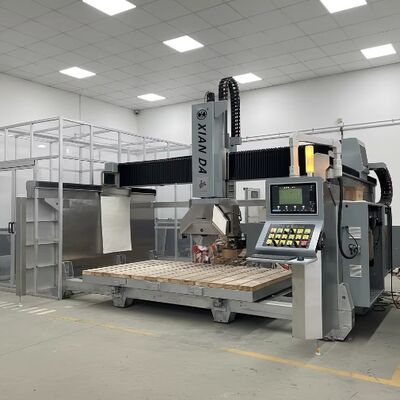

CE 5-Axis Bridge Stone Cutter Italian DDX System 900mm Saw Blade with Optional Protective Sliding Door. Xianda Machinery CNC Granite Marble Bridge Saw 5 Axis Stone Cutting Profiling Machine for Countertop.

5-Axis Bridge Stone Cutter with Italian DDX System, 900mm Saw Blade, and ±0.1 mm Cutting Accuracy 0
Detailed Photos
5-Axis Bridge Stone Cutter with Italian DDX System, 900mm Saw Blade, and ±0.1 mm Cutting Accuracy 1 5-Axis Bridge Stone Cutter with Italian DDX System, 900mm Saw Blade, and ±0.1 mm Cutting Accuracy 1 5-Axis Bridge Stone Cutter with Italian DDX System, 900mm Saw Blade, and ±0.1 mm Cutting Accuracy 1 5-Axis Bridge Stone Cutter with Italian DDX System, 900mm Saw Blade, and ±0.1 mm Cutting Accuracy 4 5-Axis Bridge Stone Cutter with Italian DDX System, 900mm Saw Blade, and ±0.1 mm Cutting Accuracy 5 5-Axis Bridge Stone Cutter with Italian DDX System, 900mm Saw Blade, and ±0.1 mm Cutting Accuracy 6
Technical Features

5 Axis Bridge cutting machine adopts 5 Axis linkage CNC System Control, Bus-based absolute value servo (with memory function for power off), high-precision linear guide rail, ball screw transmission, oil-immersed track structure, with multi-function, high precision, strong stability and other advantages.

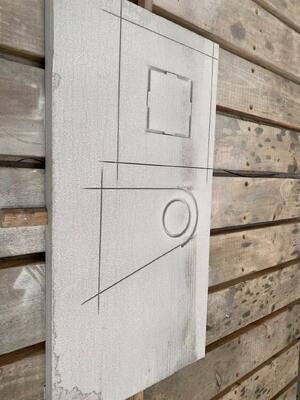

  • Processing functions include: arbitrary-shaped lines, fan-shaped plates, wash basin and special-shaped edge profiling
  • Multiple processing functions with wide application range
  • Compact space requirements and simple operation
  • Ideal equipment for professional stone processing applications
Product Parameters
Parameter Unit Create 900
Blade Diameter mm φ400-φ900
Worktable Size mm 3500*2000
Max Processing Size mm 3500*2000*320
Table Tilting Degree ° 0°-85°
Head Rotating Degree ° 0°-360°
Head Tilting Degree ° 0°-90°
Air Speed m/min 30
Repeated Accuracy of Positioning mm <0.1mm/1000
Main Motor kw 30
Gross power Kw 40
Water Consumption m³/h 3
Outline Dimension mm 6200*4000*4350
Gross Weight kg 8200
Company Profile
5-Axis Bridge Stone Cutter with Italian DDX System, 900mm Saw Blade, and ±0.1 mm Cutting Accuracy 7

Fujian Xianda Machinery Co., Ltd is a leading company for stone cutting machines and tools in China, established in 1985 and covers 20,000m³ area which located in Jinjiang Wuli Industrial area, nearby the longest and oldest stone bridge in the world, named "Wuli Bridge" and next to biggest stone market in the world - Shuitou.

With more than 34 years' experience specializing in developing and producing a series of diamond wire saw machine, column processing machine, bridge cutting machine, carving machine, profiling linear machine, baluster machine, etc. We occupied around 80% market in China for column processing machines, and own more than 30 overseas countries users.

Since its foundation in 1985, we keep "Top Technology and Superior Quality" as our standard for all machines and got CE, ISO Quality Gold Award, etc. "China Recommend Building Manufacture Enterprise", "3A Enterprise Credit Evaluation", etc for company. And we are always the sponsor for education as our CEO Mr Roy is enthusiastic about the public welfare establishments. Xianda always keep "Creat the highest value of your stone" as purpose, your visiting and contacting is always welcomed.

After Sales Service

We can provide Machine Testing Video and will be strict inspected and testing for every machines before shipping out.

  • After-sales service 24 hour on line. We will service staff training, so that continuously improve the overall quality of service.
  • We are responsible for receiving and processing customers on product quality and service quality complaints
  • We have professional and technical personnel to guide the installation and commissioning of your machine and operator training.
Frequently Asked Questions
Q: How to place order to your company?
A:
  1. Inquiry-Professional quotation.
  2. Confirm the price, lead time, logo, payment term etc.
  3. Xianda sales send the Proforma Invoice with seal.
  4. Customers make the payment as a deposit and send us Bank receipt.
  5. Sales confirm the receipt of down payment. After approval, we will arrange the production & inform the estimated time.
Q: How is After-sales Service Provided?
A: Engineer can dispatch for assembly machinery
Q: Are you Manufacturer?
A: Yes, that we are the stone machinery factory for over 30 years.
