4-Axis Bridge Cutting Machine with 85° Table Tilting 360° Head Rotation and Bus Absolute Servo for High-Precision CNC Cutting

1 juego
MOQ
To Be Negotiable
Precio
4-Axis Bridge Cutting Machine with 85° Table Tilting 360° Head Rotation and Bus Absolute Servo for High-Precision CNC Cutting
Caracteristicas Galería Descripción de producto Pida una cita
Caracteristicas
Especificaciones
Modelo: Ampliar 450 / 450L / 450-MC
Código HS: 84641090
Diámetro máximo de la cuchilla: 450 mm
Motor principal: 15kw
Dimensión de la mesa de trabajo: 3200*2000m m
grado de rotación de la mesa de trabajo: 0/85°
Tamaño máximo de corte: 3400 mm × 2000 mm × 100 mm
Dimensión de esquema: Se trata de un sistema de medición de las emisiones de gases de efecto invernadero
Resaltar:

85° Table Tilting Bridge Cutting Machine

,

360° Head Rotation CNC Cutting Centre

,

Bus Absolute Servo 4-Axis Bridge Saw
Información básica
Lugar de origen: Jinjiang, Fujian, China
Nombre de la marca: Xianda Machinery
Certificación: API, CCC, SONCAP, GOST, ISO, CE, SGS;IAF
Número de modelo: Ampliar 450 / 450L / 450-MC
Pago y Envío Términos
Detalles de empaquetado: Amarre de cable metálico, adecuado para transporte marítimo/aéreo/terrestre/ferroviario.
Tiempo de entrega: 1 mes
Condiciones de pago: LC, D/A, D/P, T/T, Western Union, MoneyGram
Capacidad de la fuente: 1000 sets/año
Descripción de producto
Expand 450 / 450L / 450-MC 4-Axis Bridge Cutting Machine – Advanced Edition
4-Axis Bridge Cutting Machine - Advanced Edition
Bus absolute-value servo, 0-360° head rotation, 85° table tilting - cut, chamfer, profile and mill in one cycle
Machine Overview
The Expand 450 Series is a 4-axis bridge-type CNC cutting centre built for high-precision, multi-angle processing of granite, marble and engineered stone.
Bus absolute-value servo, 0-360° cutting-head rotation, 85° table tilting and oil-immersed track let you cut, chamfer, profile and mill complex shapes in a single program - mirror-quality edges.
Why Expand 450 Advanced?
Feature Benefit
4-axis linkage (X-Y-Z + C) 360° head rotation → continuous arc, column, 3-D relief
85° table tilting Convenient loading
Bus absolute servo Power-off memory, zero backlash
Oil-immersed track Sealed against dust, longer rail life
Ø 350-450 mm blade Cuts 100 mm deep in one pass, 20-40 m/min feed

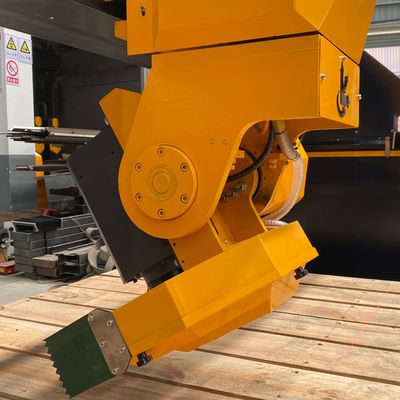

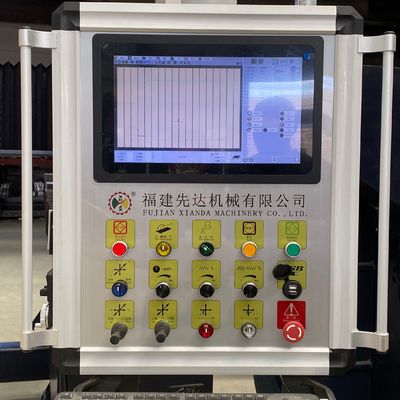

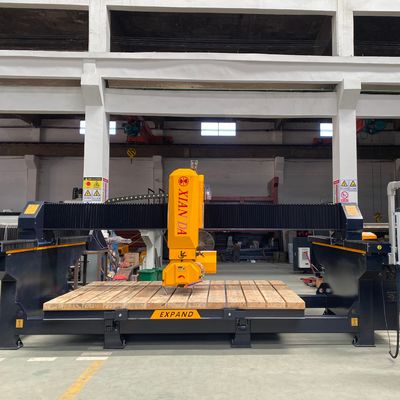

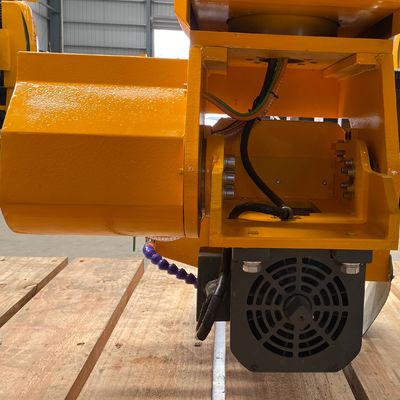

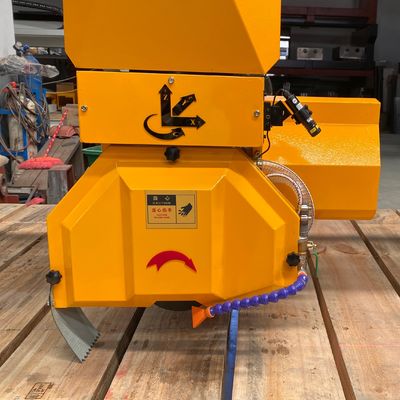

4-Axis Bridge Cutting Machine with 85° Table Tilting 360° Head Rotation and Bus Absolute Servo for High-Precision CNC Cutting 0 4-Axis Bridge Cutting Machine with 85° Table Tilting 360° Head Rotation and Bus Absolute Servo for High-Precision CNC Cutting 1 4-Axis Bridge Cutting Machine with 85° Table Tilting 360° Head Rotation and Bus Absolute Servo for High-Precision CNC Cutting 2 4-Axis Bridge Cutting Machine with 85° Table Tilting 360° Head Rotation and Bus Absolute Servo for High-Precision CNC Cutting 3
Model Selector
Model Blade Ø Table Size Max Block Tilt Head Rotate Foot-Print Weight
Expand 450 350-450 mm 3.2 × 2 m 3.2 × 2 × 0.1 m 45° 0-360° 5 × 3.1 × 2.7 m ~4 t
Expand 450L same same same 0-60° same same same
Expand 450-MC same same same 45° chamfer same same same
Same 4-axis system, oil-immersed track and permanent-magnet motor for all models.
Four-Axis Motion & Functions
  • X-axis - bridge longitudinal (3,200 mm)
  • Y-axis - cross beam transverse (2,000 mm)
  • Z-axis - head vertical (100 mm)
  • C-axis - 0-360° head rotation (continuous arc, column, 3-D relief)
Result: true 3-D sculpture, 360° column, under-cut or chamfer without blade change.
Application Gallery
  • 360° columns - Ø100-1,000 mm, full or barrel
  • Arc slabs - curved wall cladding, column façades
  • 45° chamfers - kerb edges, tombstone borders
  • 3-D reliefs - letters, numerals, Chinese characters
  • Under-cuts - sink cut-outs, shadow grooves
Materials: granite, marble, quartzite, basalt, engineered stone.
Workflow (1 Operator)
  1. Load slab onto tilting table (vacuum or mechanical clamp)
  2. Import CAD file (.dxf, .stp) or use on-screen wizard
  3. Select blade speed, tilt, rotation - click START
  4. Machine auto-cuts - head rotates & table tilts as programmed
  5. Unload finished piece - ready for polishing or direct install
Pricing, MOQ & Shipping
Item Detail
MOQ 1 (one) machine
Shipping Sea freight to nearest port included
Incoterms FOB, CIF, DDP optional
Lead time 25 days stock / 35 days custom
Payment T/T 30% deposit, 70% before shipment; L/C at sight accepted
